Pump System Applications:
- This system is suitable for the boost, supply and transfer of water with no
impurities, eg. water (or drinking water) supply systems
- Can be effectively used in a number of places including
apartments, high-set houses, schools, and also business premises such as beauty parlor, salon, spa, motels, supermarkets and etc.
|
System Features:
Initially the pressure values for both the "ON" and "OFF" position of the system's pressure switch need to be set. The
pump then automatically starts to boost water
when the pressure inside the connected pipeline drops below the pressure setting of the "ON" position (i.e. when water is used) and automatically
stops when the pressure inside the pipeline reaches the pressure setting of
the "OFF" position..
Requirements:
Ambient Temperature: Max. +40 deg. Celsius
Liquid Temperature: +0 deg. Celsius ~ +60 deg. Celsius
Input Pressure: must be lower than the system's pressure setting when its pressure
switch is set to "ON" position

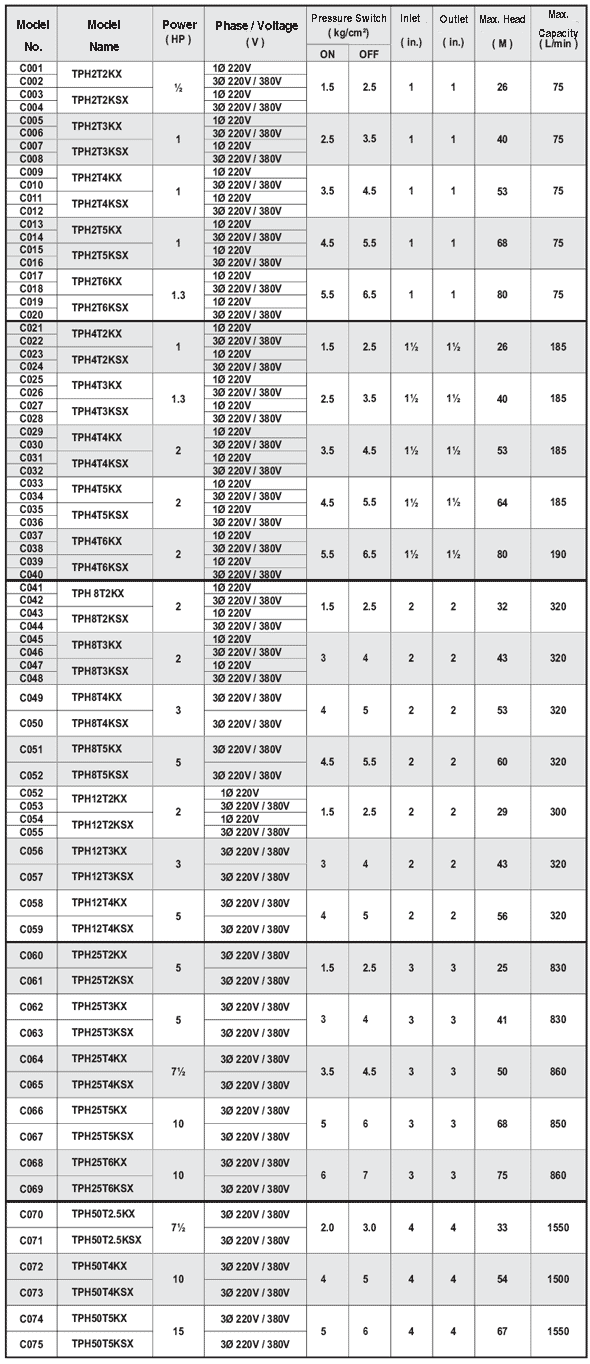

Pump Specifications:
Pump Performance Chart:

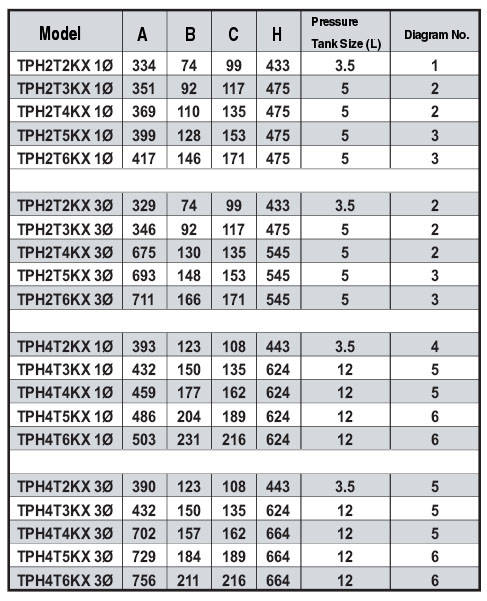

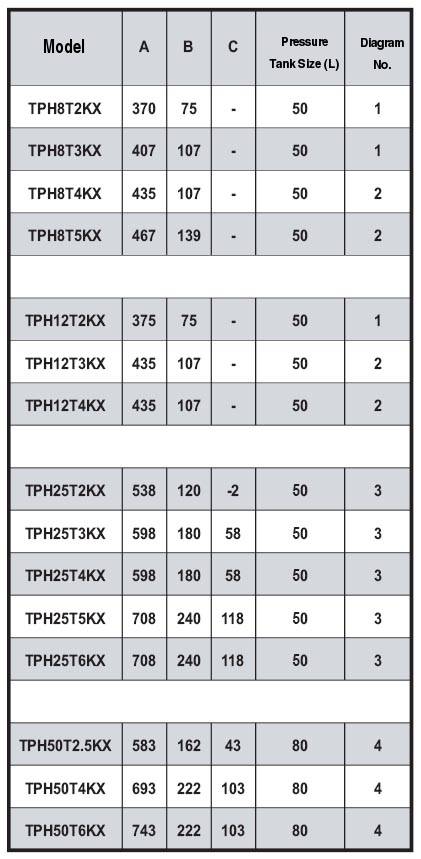

Pump Dimensions:
