X Series - Twin TPH Model with Centrol Pressure Control System

Features:
1. Single pump operation: Initially the pressure values for both the "ON" and "OFF" position of the system's pressure switch need to be set. The pump then automatically starts to boost water when the pressure inside the connected pipeline drops below the pressure setting of the "ON" position (i.e. when water is used) and automatically stops when the pressure inside the pipeline reaches the pressure setting of the "OFF" position.
2. Running two pumps in parallel: The system will start with the first pump. As the water demand increases to the point where water pressure cannot be maintained by running a single pump, the second one will kick in automatically to make up the shortfall. When the water usage drops back to the level capable for a single pump to handle, the second pump will stop automatically.
3. When the water usage is little, ie. water pressure can be handled by a single pump, the system can be programmed to use either one of the two pumps or even rotate the running of individual pump.
4. Both pumps are centrifugal multi-stage in design which produces very low noise when operating. This system can be custom built to suit customer's required pressure rating and flow.
5. The pumps' impellers are made of stainless steel to enhance durability.

Requirements:
Ambient Temperature: Max. +40 deg. Celsius
Liquid Temperature: +0 deg. Celsius ~ +60 deg. Celsius
Input Pressure: must be lower than the system's pressure setting when its pressure switch is set to "ON" position

Pump Specifications:
60HZ

Pump Performance Chart:

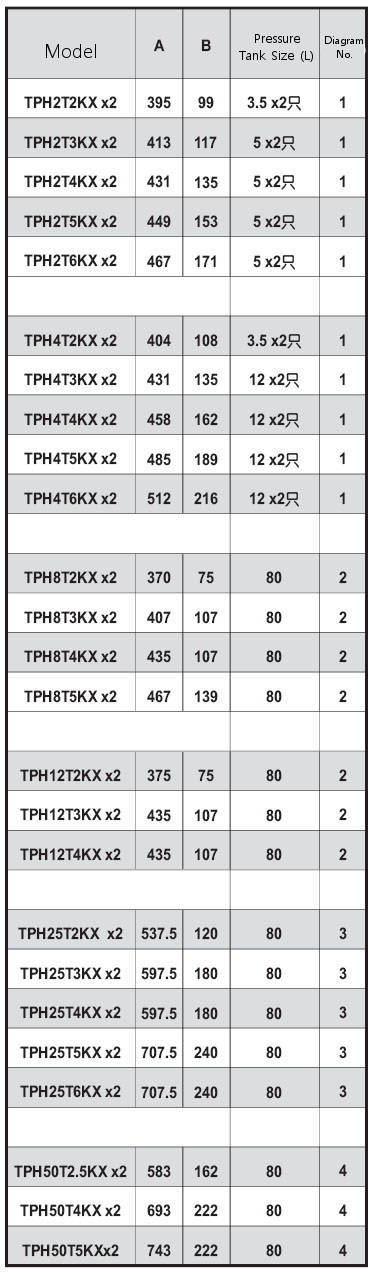

Pump Dimensions:

For more information about this powerful system, please contact us!
