2 HP Inverter Controlled Pump

Pump Features:
1. The TQIC pump is a complete, all-in-one unit, consists of pump, motor, inverter, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
2. The Micro Frequency Inverter detects the instantaneous pressure in the system through the pressure transmitted and adjusts motor speed to keep it at the required value. In return it will save money on your electric bill.
3. Compact design and quiet operation make the TQIC series suitable for many applications.
4. This pump is constructed from the top quality corrosion resistant materials.
5. The TQIC pump has a unique automatic restart function. Once the pump starts to operate, the pressure sensor will automatically detect the pressure limit. If the pressure limit can not reach the original setting within 2 minutes, the pump will stop and attempt to restart every 10 minutes until the function is deactivated. It will also stop when the temperature exceeds 55 degree Celsius, and will restart when the temperature drops to 40 degree Celsius.
6. Its motor has built-in thermal overload protection to protect against high operating temperatures and power surges.
7. The TQIC pump has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
8.The pumps will lift water up to 7.6 M, with foot valve and pump suction piping filled with water.

Pump Specifications:

Requirements:
Ambient Temperature: Max. +40 degree Celsius
Liquid Temperature: +2 degree Celsius ~ +40 degree Celsius
Relative Humidity: Max. 85%(RH)
Input Pressure: must be lower than the preset constant pressure value setting.

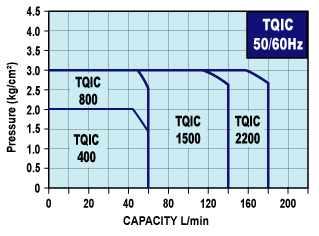

Pump Performance Chart:

Pump Dimensions:
