The
Revolutionary Inverter Pump Technology is Here! More Energy Efficient
and Cost Effective to run. Your business can help to reduce Global
Warming by having one installed today.
Pump
System Applications:
- This system is suitable for the boost, supply and transfer
of clean water with no
impurities, eg.water (or drinking water) supply systems
- It can be effectively and reliably used in a number of places
including
apartments, residential buildings, schools, and also business
premises
such as beauty parlor, salon, spa, motels, supermarkets and etc. |
Pump
Features:
This smart system seemlessly integrates various components
including pressure tank, pressure switch, pressure sensor and inverter
control unit to deliver a comprehensive solution for many common water
supply problems. Its many useful features are as follows:
* Stable Start
during Normal Operation -
When water is used, the pump starts operating steadily. The sensor in
the inverter control center detects the appropriate water pressure
required and adjusts the motor's revolution accordingly by manipulating
the motor's operating frequency. This enables user's desired water
pressure setting to be maintained in the most efficient manner. One
major benefit of such inverter technology is that over time it would
substantially reduce electricity consumption and yield excellent cost
savings for your business! You will also be thanked by future
generations for taking pro-active part in making the environment
greener and more sustainable.
* Constant and Stable
Pressure -
The water pressure will not exceed user's pressure setting. Even if the
water usage is excessive and runs outside the constant pressure range,
the water supply will be maintained steadily
* Dry Running Protection
-
When the water source suddenly becomes unavailable, the pump will
automatically stop operating and then retries to start until normal
water supply is resumed.
* Automatically Stop
Operation -
When the microprocessor detects the water has been turned
off, it will reduce the revolution of pump until it stops.
* Leakage Detection and
Pressure
Compensation - The inverter's microprocessor detects any
small leakages in the connected pipeline and adjust the revolution of
pump until the preset pressure value is met. The system's pressure tank
also acts as a buffer to prevent the pump being activated too
frequently.
* Pressure Setting
Adjustment - Within the confines of the pump's
capacity, the system's pressure setting can be adjusted from the
inverter control panel as required by the user.
* Indicating
lights on the inverter control panel will show the pump's status of
operation.
* Mode Switch
- If the inverter's pressure sensor malfunctions, the user can switch
back to the conventional pressure switch control mode to keep water
flowing.
(Not
available on 2T/4T standard series)
Requirements:
Ambient Temperature: Max. +40 deg. Celsius
Liquid Temperature: +0 deg. Celsius~ +60 deg. Celsius
Input Pressure: must be lower than the pump's pressure setting when its
switch is set to "ON" position

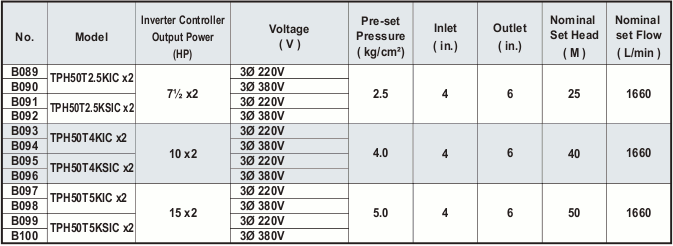

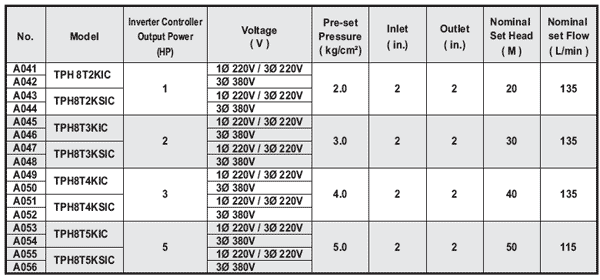

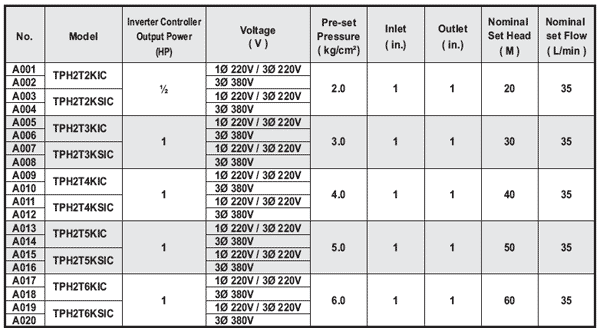

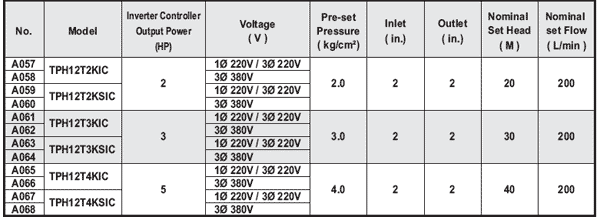

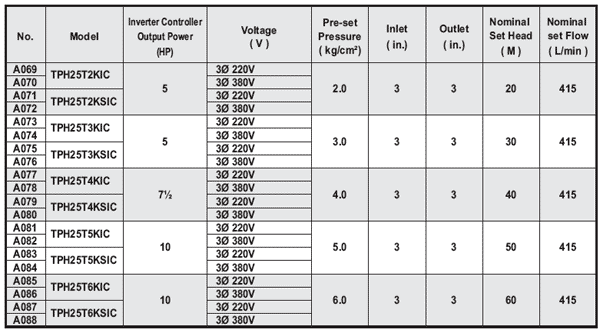

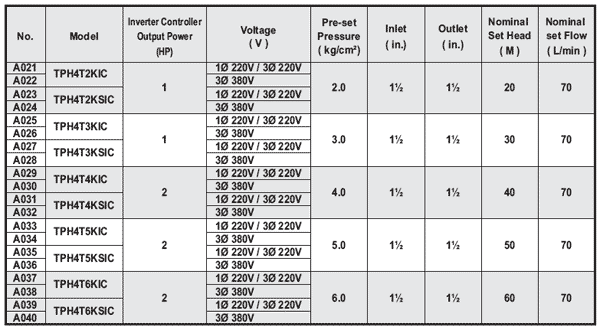

Pump Specifications:

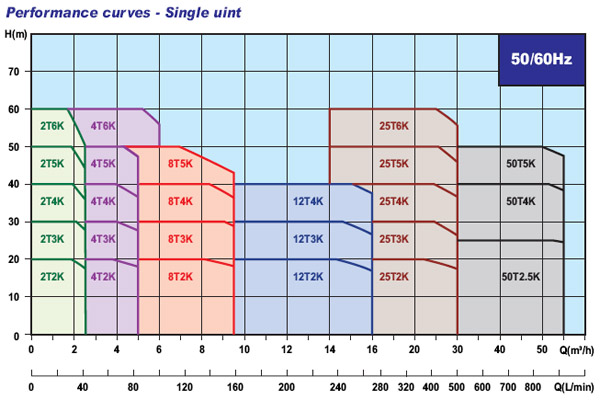

Pump
Performance Chart::
