1/4 HP X 3/4" Electronic Hot Water Pump

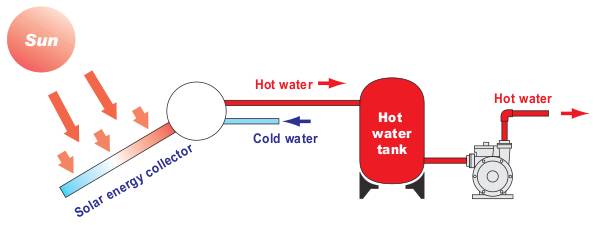

Pump Applications: This pump can be used to boost the transfer of clean water free of impurities. Its reinforced construction will tolerate water temperature of up to 80 degree Celsius which makes it ideal for boosting water from most solar hot water systems. The pump comes equipped with a pressure release valve which would automatically release pressure when its internal pressure reaches 5 kg/cm2 to ensure safety of use.

Pump Specifications:
50HZ

Model	Output Power	Capacity (L/MIN)	Max. Head (M)	Suction/ Discharge (inch)	Motor Shell	Freq. (HZ)	Phase	Voltage
TQCN200	1/4HP	45	22	1	STEEL	50HZ	1	200~240

60HZ

Model	Output Power	Capacity (L/MIN)	Max. Head (M)	Suction/ Discharge (inch)	Motor Shell	Freq. (HZ)	Phase	Voltage
TQCN200	1/4HP	64	22	1	STEEL	60HZ	1	110/220

Requirements:
1. Ambient temperature: Max. +40 deg. Celsius
2. Liquid temperature: +2 deg. Celsius ~ +90 deg. Celsius
3. Operating pressure: Max. 5 kg/cm²
4. Input pressure: Max. 1 kg/cm²
5. Automatic pressure release is triggered at: 5kg/cm²
6. Before using the pump, one should ensure that the inlet pressure setting is lower than factory pressure setting.

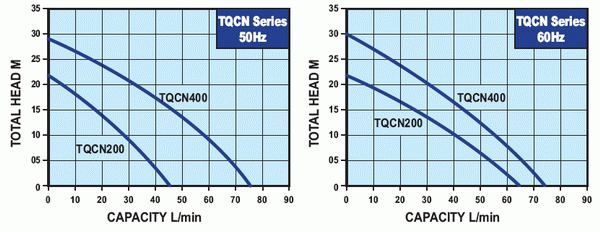

Pump Performance Chart:
